Certbot自动续签SSL证书-Nginx
本笔记主要记录使用阿里云域名以及阿里云ECS实例创建的web服务器，利用Certbot工具去给Nginx申请证书的过程
先决条件
必须需要拥有一个域名，本文中使用的是阿里云中的域名进行测试

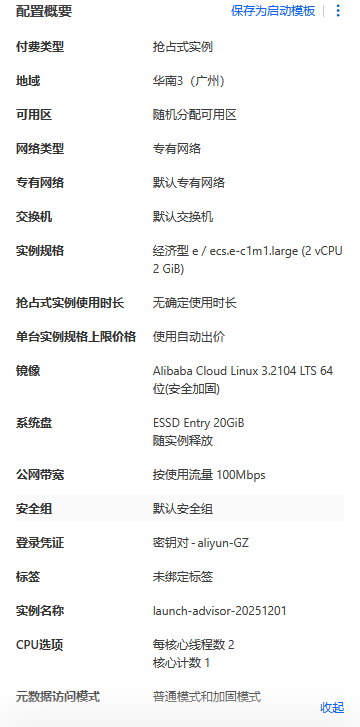

购买一台ecs实例作为我们本次测试的web服务器，具体参数可根据自身具体调整。
记得开放80与443端口！

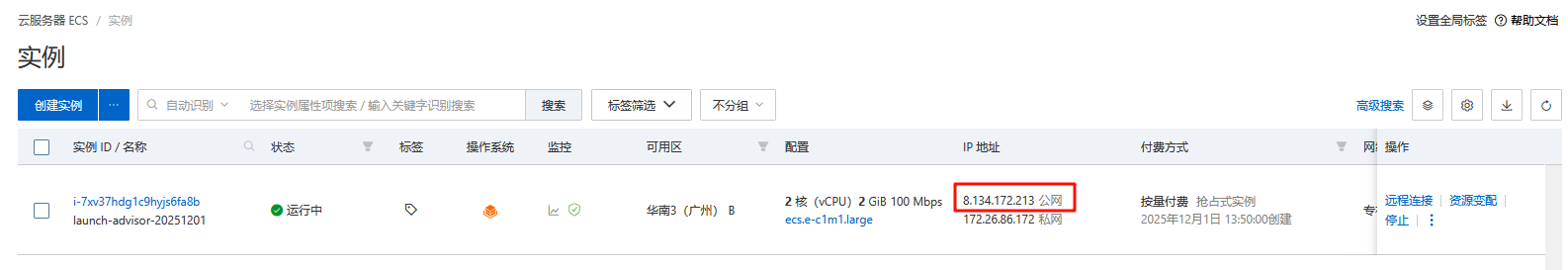

查看公网IP

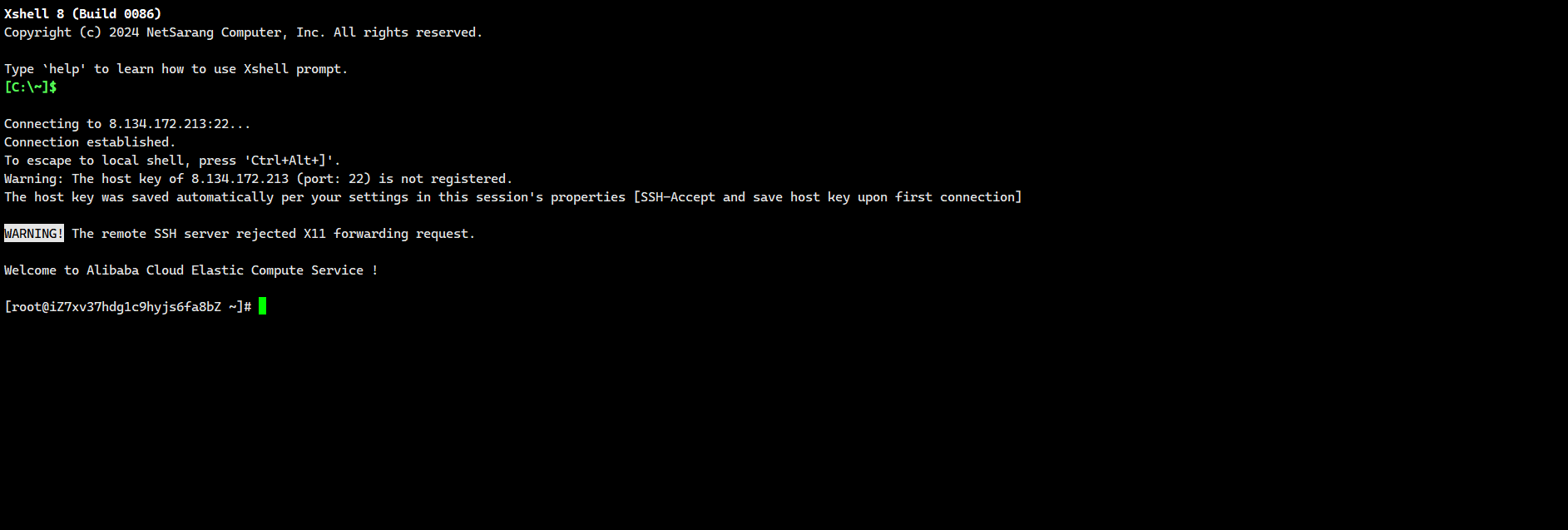

使用远程工具进行连接
根据购买服务器时使用的连接方式进行连接
更改主机名
[root@web-nginx ~]# hostnamectl
Static hostname: web-nginx
Icon name: computer-vm
Chassis: vm
Machine ID: 289800cb8b604e6ba20ec84f5d4e1081
Boot ID: ad4b494b4af94bbc956f4239c299c072
Virtualization: kvm
Operating System: Alibaba Cloud Linux 3.2104 U12 (OpenAnolis Edition)
Kernel: Linux 5.10.134-19.1.al8.x86_64
Architecture: x86-64
下载所需安装包
[root@web-nginx ~]# yum install -y nginx certbot python3-certbot-nginx
[root@web-nginx ~]# certbot --version
certbot 1.22.0
[root@web-nginx ~]# nginx -v
nginx version: nginx/1.20.1
启动nginx
systemctl start nginx

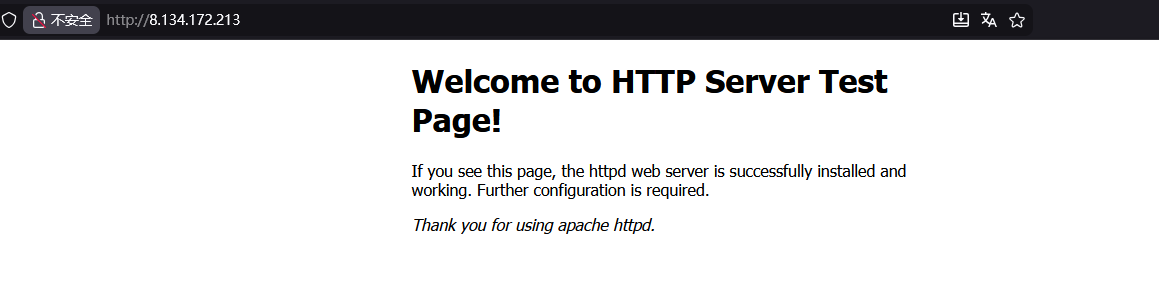

开启nginx之后，先使用IP+http的方式，去进行访问测试防火墙开放正常
基础准备

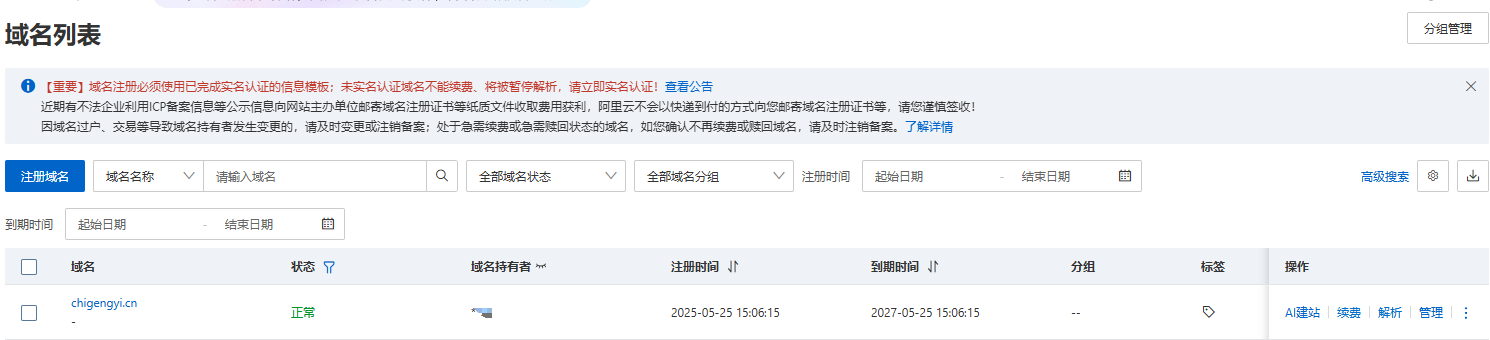

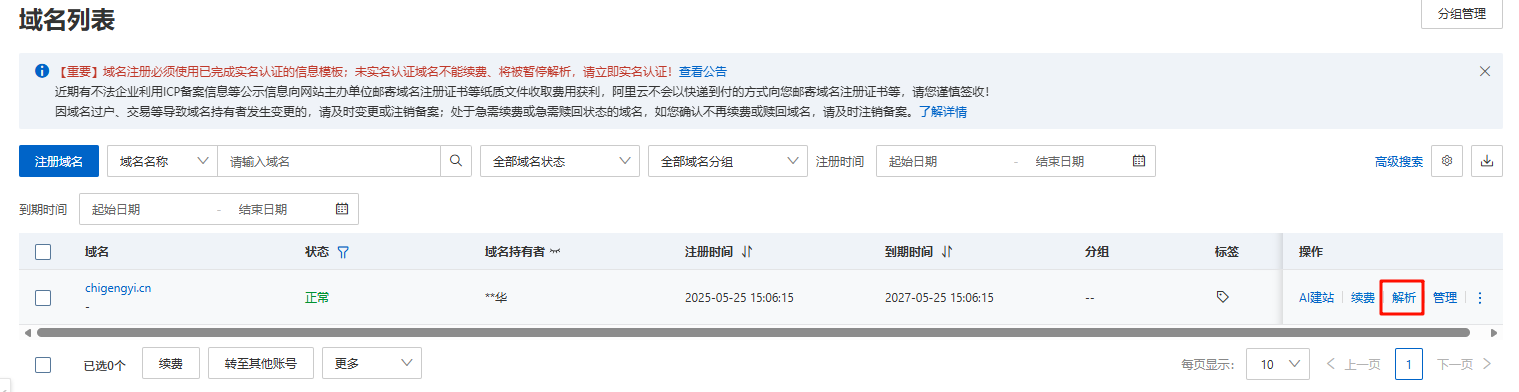

在域名上对web服务器进行解析条目创建

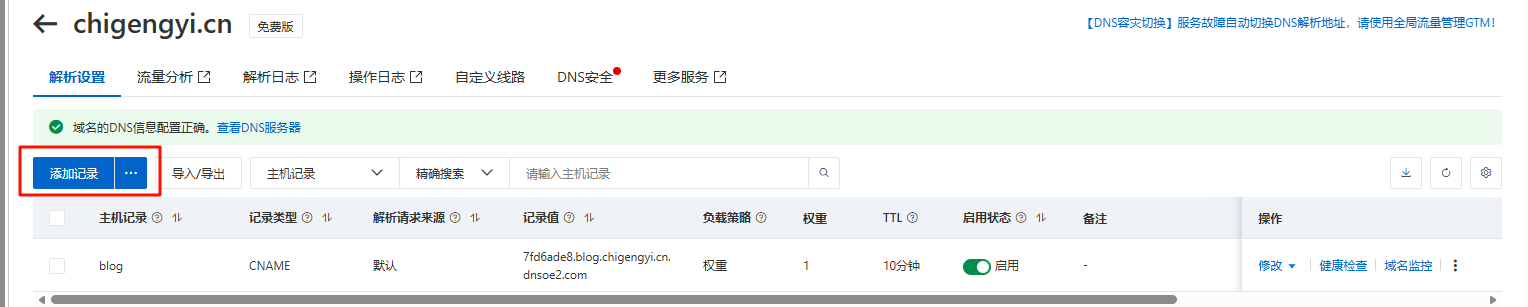

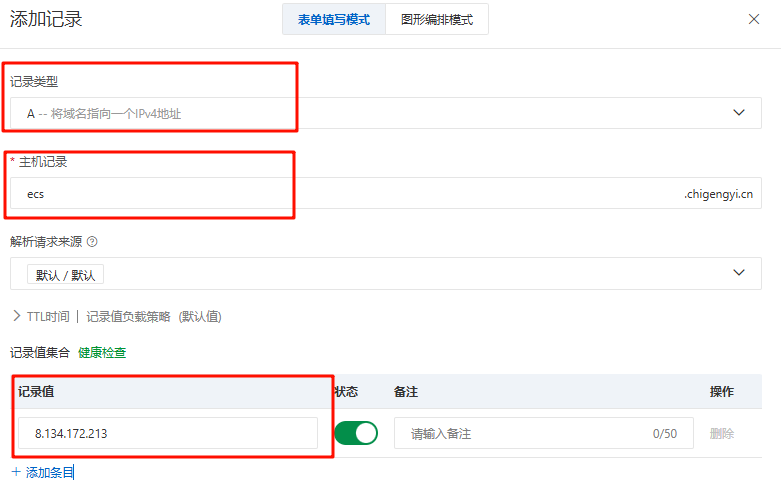

选择添加记录
具体参数如图

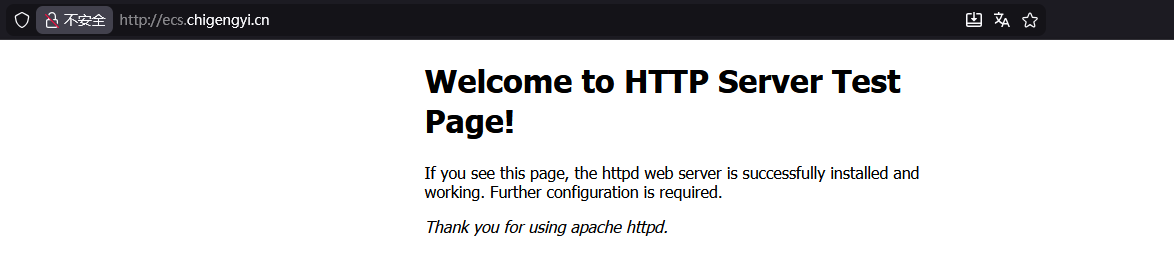

使用域名去进行访问测试
证书申请
使用certbot命令进行证书申请
sudo certbot --nginx
[root@web-nginx ~]# sudo certbot --nginx
Saving debug log to /var/log/letsencrypt/letsencrypt.log
Enter email address (used for urgent renewal and security notices)
(Enter 'c' to cancel): 2962149672@qq.com # 输入你的邮箱地址
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Please read the Terms of Service at
https://letsencrypt.org/documents/LE-SA-v1.6-August-18-2025.pdf. You must agree
in order to register with the ACME server. Do you agree?
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
(Y)es/(N)o: y # 填写Y
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Would you be willing, once your first certificate is successfully issued, to
share your email address with the Electronic Frontier Foundation, a founding
partner of the Let's Encrypt project and the non-profit organization that
develops Certbot? We'd like to send you email about our work encrypting the web,
EFF news, campaigns, and ways to support digital freedom.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
(Y)es/(N)o: y
Account registered.
Please enter the domain name(s) you would like on your certificate (comma and/or
space separated) (Enter 'c' to cancel): ecs.chigengyi.cn
Requesting a certificate for ecs.chigengyi.cn
Successfully received certificate.
Certificate is saved at: /etc/letsencrypt/live/ecs.chigengyi.cn/fullchain.pem
Key is saved at: /etc/letsencrypt/live/ecs.chigengyi.cn/privkey.pem
This certificate expires on 2026-03-01.
These files will be updated when the certificate renews.
Certbot has set up a scheduled task to automatically renew this certificate in the background.
Deploying certificate
Could not install certificate
NEXT STEPS:
- The certificate was saved, but could not be installed (installer: nginx). After fixing the error shown below, try installing it again by running:
certbot install --cert-name ecs.chigengyi.cn
通过查看对应目录，验证证书是否成功申请下来
[root@web-nginx ~]# ls -la /etc/letsencrypt/live/ecs.chigengyi.cn/
total 12
drwxr-xr-x 2 root root 4096 Dec 1 14:15 .
drwx------ 3 root root 4096 Dec 1 14:15 ..
lrwxrwxrwx 1 root root 40 Dec 1 14:15 cert.pem -> ../../archive/ecs.chigengyi.cn/cert1.pem
lrwxrwxrwx 1 root root 41 Dec 1 14:15 chain.pem -> ../../archive/ecs.chigengyi.cn/chain1.pem
lrwxrwxrwx 1 root root 45 Dec 1 14:15 fullchain.pem -> ../../archive/ecs.chigengyi.cn/fullchain1.pem
lrwxrwxrwx 1 root root 43 Dec 1 14:15 privkey.pem -> ../../archive/ecs.chigengyi.cn/privkey1.pem
-rw-r--r-- 1 root root 692 Dec 1 14:15 README
HTTPS验证
已配置的conf文件测试
创建一个Nginx的子文件进行测试
vim /etc/nginx/conf.d/ecs.chigengyi.cn.conf
切记文件名以conf结尾，否则nginx不会将该子文件包含进主文件中，因为nginx.conf中对于该子目录的规则为*.conf
include /etc/nginx/conf.d/*.conf;
ecs.chigengyi.cn.conf文件内容
server {
listen 80;
server_name ecs.chigengyi.cn; # 服务器名称，填写自己的域名
# 重定向 HTTP 到 HTTPS
return 301 https://$server_name$request_uri;
}
server {
listen 443 ssl http2;
server_name ecs.chigengyi.cn; # 服务器名称，填写自己的域名
# SSL 证书路径
ssl_certificate /etc/letsencrypt/live/ecs.chigengyi.cn/fullchain.pem;
ssl_certificate_key /etc/letsencrypt/live/ecs.chigengyi.cn/privkey.pem;
# SSL 安全配置
ssl_protocols TLSv1.2 TLSv1.3;
ssl_ciphers ECDHE-RSA-AES256-GCM-SHA512:DHE-RSA-AES256-GCM-SHA512:ECDHE-RSA-AES256-GCM-SHA384:DHE-RSA-AES256-GCM-SHA384;
ssl_prefer_server_ciphers off;
ssl_session_cache shared:SSL:10m;
ssl_session_timeout 10m;
# 网站根目录（根据你的实际情况修改）
root /usr/share/nginx/html;
index index.html index.htm;
location / {
try_files $uri $uri/ =404;
}
# 其他配置...
}
检测nginx配置文件是否正确
nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
加载配置文件
nginx -s reload
或重启nginx服务
systemctl restart nginx
查看443端口是否启用
# ss -ntpl | grep "443"
LISTEN 0 511 0.0.0.0:443 0.0.0.0:* users:(("nginx",pid=2179,fd=7),("nginx",pid=2178,fd=7),("nginx",pid=2097,fd=7))

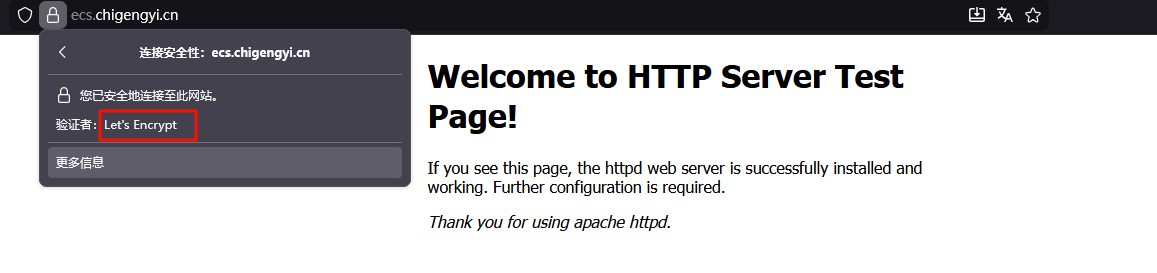

使用https://ecs.chigengyi.cn访问网页测试
可以看到，已经成功为网站添加了使用certbot申请的Let’s Encrypt证书
使用certbot命令去安装证书
首先我们需要有一个类似于这样的配置文件，里面包含了用于申请证书的域名等信息
server {
listen 80;
server_name ecs.chigengyi.cn;
root /usr/share/nginx/html;
index index.html index.htm;
location / {
try_files $uri $uri/ =404;
}
}
重新加载配置
sudo nginx -t && sudo nginx -s reload
使用 certbot 重新配置，添加 –redirect 参数
sudo certbot --nginx -d ecs.chigengyi.cn --redirect
查看conf配置文件变化
cat /etc/nginx/conf.d/ecs.chigengyi.cn.conf
server {
server_name ecs.chigengyi.cn;
root /usr/share/nginx/html;
index index.html index.htm;
location / {
try_files $uri $uri/ =404;
}
listen 443 ssl; # managed by Certbot
ssl_certificate /etc/letsencrypt/live/ecs.chigengyi.cn/fullchain.pem; # managed by Certbot
ssl_certificate_key /etc/letsencrypt/live/ecs.chigengyi.cn/privkey.pem; # managed by Certbot
include /etc/letsencrypt/options-ssl-nginx.conf; # managed by Certbot
ssl_dhparam /etc/letsencrypt/ssl-dhparams.pem; # managed by Certbot
}
server {
if ($host = ecs.chigengyi.cn) {
return 301 https://$host$request_uri;
} # managed by Certbot
listen 80;
server_name ecs.chigengyi.cn;
return 404; # managed by Certbot
}
这样也会产生效果，但在实际生产环境中，不建议使用该方法。
因为使用certbot命令去自生成的配置文件参数中，带有的if语句，会降低nginx的性能，并且自定义的配置文件，往往才更加适合自己的环境需求。
自动续签
openssl命令查看当前证书有效期截止日期
openssl x509 -enddate -noout -in /etc/letsencrypt/live/ecs.chigengyi.cn/fullchain.pem
# openssl x509 -enddate -noout -in /etc/letsencrypt/live/ecs.chigengyi.cn/fullchain.pem
notAfter=Mar 1 05:16:32 2026 GMT
可以看到目前的截止日期为2026.3.1
测试续签流程
使用certbot renew --dry-run命令测试续签流程，是否正常
sudo certbot renew --dry-run
# sudo certbot renew --dry-run
Saving debug log to /var/log/letsencrypt/letsencrypt.log
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Processing /etc/letsencrypt/renewal/ecs.chigengyi.cn.conf
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Simulating renewal of an existing certificate for ecs.chigengyi.cn
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Congratulations, all simulated renewals succeeded:
/etc/letsencrypt/live/ecs.chigengyi.cn/fullchain.pem (success)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
查找certbot自动续签文件
ls -la /usr/lib/systemd/system/certbot*
查看certbot-renew.timer状态
systemctl status certbot-renew.timer
certbot-renew.timer是certbot的定时器，触发机制如下
graph LR
A[定时器启动] --> B[检查证书有效期]
B --> C{是否需要续订?}
C -->|是| D[执行续订]
C -->|否| E[跳过]
D --> F[更新证书文件]
F --> G[重启Web服务]
G --> H[完成]
查看证书有效期
certbot certificates
Saving debug log to /var/log/letsencrypt/letsencrypt.log
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Found the following certs:
Certificate Name: ecs.chigengyi.cn
Serial Number: 58635d1459a141da2032b73db56bc5269ef
Key Type: RSA
Domains: ecs.chigengyi.cn
Expiry Date: 2026-03-01 06:45:44+00:00 (VALID: 89 days) # 证书过期时间
Certificate Path: /etc/letsencrypt/live/ecs.chigengyi.cn/fullchain.pem
Private Key Path: /etc/letsencrypt/live/ecs.chigengyi.cn/privkey.pem
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
启用certbot-renew.timer
sudo systemctl enable certbot-renew.timer
sudo systemctl start certbot-renew.timer
sudo systemctl status certbot-renew.timer
查看定时器下一次的触发时间
# sudo systemctl list-timers | grep certbot
Tue 2025-12-02 09:37:13 CST 17h left n/a n/a certbot-renew.timer certbot-renew.service
查看certbot-renew.service的EnvironmentFile
systemctl show certbot-renew.service | grep EnvironmentFile
相关参数
cat /etc/sysconfig/certbot | grep -Ev "^$|#"
PRE_HOOK=""
POST_HOOK=""
DEPLOY_HOOK=""
CERTBOT_ARGS=""
作用：
-
PRE_HOOK：在获取或续期证书之前执行的命令，执行准备工作，如停止 Web 服务PRE_HOOK="systemctl stop nginx" -
POST_HOOK：在获取或续期证书之后执行的命令，执行清理工作，如重新启动 Web 服务POST_HOOK="systemctl start nginx" -
DEPLOY_HOOK：在证书成功获取或续期后执行的命令，与 POST_HOOK 的区别-
DEPLOY_HOOK：仅在证书成功更新后执行 -
POST_HOOK：无论成功与否都会执行
DEPLOY_HOOK="systemctl reload nginx" -
-
CERTBOT_ARGS：传递给 Certbot 命令的额外参数，自定义 Certbot 行为# 强制续期 CERTBOT_ARGS="--force-renewal" # 让 Certbot 以静默模式运行 CERTBOT_ARGS="--quiet"
修改EnvironmentFile文件参数
设置续订证书之后重新加载nginx服务，静默输出模式（正常运行时只输出错误信息）
vim /etc/sysconfig/certbot
PRE_HOOK=""
POST_HOOK="--post-hook 'systemctl reload nginx'"
DEPLOY_HOOK=""
CERTBOT_ARGS="--quiet"
验证自动续签流程是否成功
启动certbot-renew.service
sudo systemctl start certbot-renew.service
使用命令带上我们文件中设置的参数进行--dry-run测试
sudo /usr/bin/certbot renew --noninteractive --no-random-sleep-on-renew --post-hook "systemctl reload nginx" --quiet --dry-run
如果想看到测试的回显信息，可以去掉--quiet参数进行测试
查看certbot-renew.service
cat /usr/lib/systemd/system/certbot-renew.service
[Unit]
Description=This service automatically renews any certbot certificates found
[Service]
EnvironmentFile=/etc/sysconfig/certbot
Type=oneshot
ExecStart=/usr/bin/certbot renew --noninteractive --no-random-sleep-on-renew $PRE_HOOK $POST_HOOK $RENEW_HOOK $DEPLOY_HOOK $CERTBOT_ARGS
可以看到该配置文件中，使用的都是变量参数，而这些参数，也正是我们之前修改的配置文件/etc/sysconfig/certbot中的内容
[root@web-nginx letsencrypt]# sudo systemctl show certbot-renew.service | grep Environment
EnvironmentFiles=/etc/sysconfig/certbot (ignore_errors=no)
启动certbot-renew.service，触发续签任务
sudo systemctl start certbot-renew.service
通过journalctl查看日志，进行验证
sudo journalctl -u certbot-renew.service --since "1 minute ago" --no-pager
-- Logs begin at Sun 2025-06-29 15:34:18 CST, end at Mon 2025-12-01 17:06:17 CST. --
Dec 01 17:06:16 web-nginx systemd[1]: Starting This service automatically renews any certbot certificates found...
Dec 01 17:06:16 web-nginx systemd[1]: certbot-renew.service: Succeeded.
Dec 01 17:06:16 web-nginx systemd[1]: Started This service automatically renews any certbot certificates found.
这个回显内容表示 certbot-renew.service 服务成功运行，但没有需要续订的证书。
我们的证书是刚申请的，并没有过期，服务执行的流程属于正常。
强制更新证书进行验证
使用certbot renew命令，加上--force-renewal参数，强制更新证书
sudo certbot renew --force-renewal
Saving debug log to /var/log/letsencrypt/letsencrypt.log
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Processing /etc/letsencrypt/renewal/ecs.chigengyi.cn.conf
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Renewing an existing certificate for ecs.chigengyi.cn
Reloading nginx server after certificate renewal
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Congratulations, all renewals succeeded:
/etc/letsencrypt/live/ecs.chigengyi.cn/fullchain.pem (success)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
使用certbot certificates验证当前证书的有效期
certbot certificates
Saving debug log to /var/log/letsencrypt/letsencrypt.log
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Found the following certs:
Certificate Name: ecs.chigengyi.cn
Serial Number: 68da2573bb5b6d87114d622bd7d62e90aa5
Key Type: RSA
Domains: ecs.chigengyi.cn
Expiry Date: 2026-03-01 08:26:11+00:00 (VALID: 89 days)
Certificate Path: /etc/letsencrypt/live/ecs.chigengyi.cn/fullchain.pem
Private Key Path: /etc/letsencrypt/live/ecs.chigengyi.cn/privkey.pem
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
这样配置之后，Certbot就会自动为我们续签SSL证书了！
